Dry Scrubber

Home Products Dry Scrubber

Product Overview

View Product Video

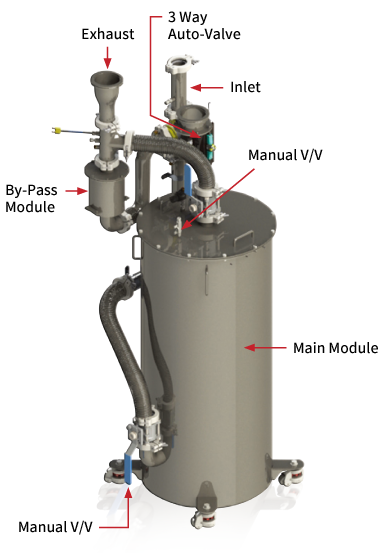

  • 1Emergency Back-Up

    • >> Unnecessary to down Main Tool During Change the Main Module

  • 2By-Pass Module

    • Used gases released into the By-Pass line are passed through the By-Pass Module.
    • It is processed safely for more than 1 day.

  • 33 Way Auto-Valve

    • Change to automatic backup mode when already set pressure valve is reached.

Advantage

  • 1Touch Screen : Push P.M Mode

  • 2N2 Purge : 10min Over
           (Eliminate remalining Toxic gases)

  • 3Close the Manual Valve

  • 4Unlock the Clamp

  • 5Take Out the Main Module

  • 66Replace with a prepared
           (Include adsorbent in the Main Module)

  • 7Prevent Powder and Corrosion
           All Safety Devices must be met to operate.

There are safety devices to prevent Gas Leakage, Fire and Explosion.

Application

Process Gas
IMP PH3,ASH3,BF3
Diffusion HF,Cl2,NH3..(Acid, Alkali)

Specification

Content Description

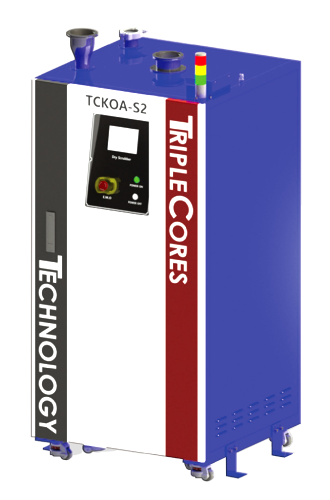

Model TCKOA-S2
Treatment type Adsorbent
Application IMP, Chemical (Acid, Alkali)
Capacity ~200LPM (Customize)
Operation type Automatic (PLC base TOUCH screen)
Dimension (W×D×H, mm) Scrubber 800×800×1,610
Weight (kg) 600 kg
Power 1-Phase, 208Vac., 50/60Hz
Max. consumption Power / 800

Utility

Content Description
Specification Connection
Inlet 2~4 Port NW50 KF
N2 5~10 LPM (4~5kg/cm2) 3/8", Swagelok
Exhaust Capacity -40 ~ -80mmH2O NW 100 MF Flange
Capacity -40 ~ -80mmH2O NW 100 MF Flange
